Pressure (MPa): ≤ 30
Temperature (°C): -30 to + 120
Peripheral speed (m/s): ≤ 5
Hydraulic oils as per DIN 51524 Part 1 – 3, lubricating oils, mineral-oil based lubricating greases, non-flammable hydraulic fluids HFA, HFB, HFC as per VDMA 24317, water, water-oil emulsions

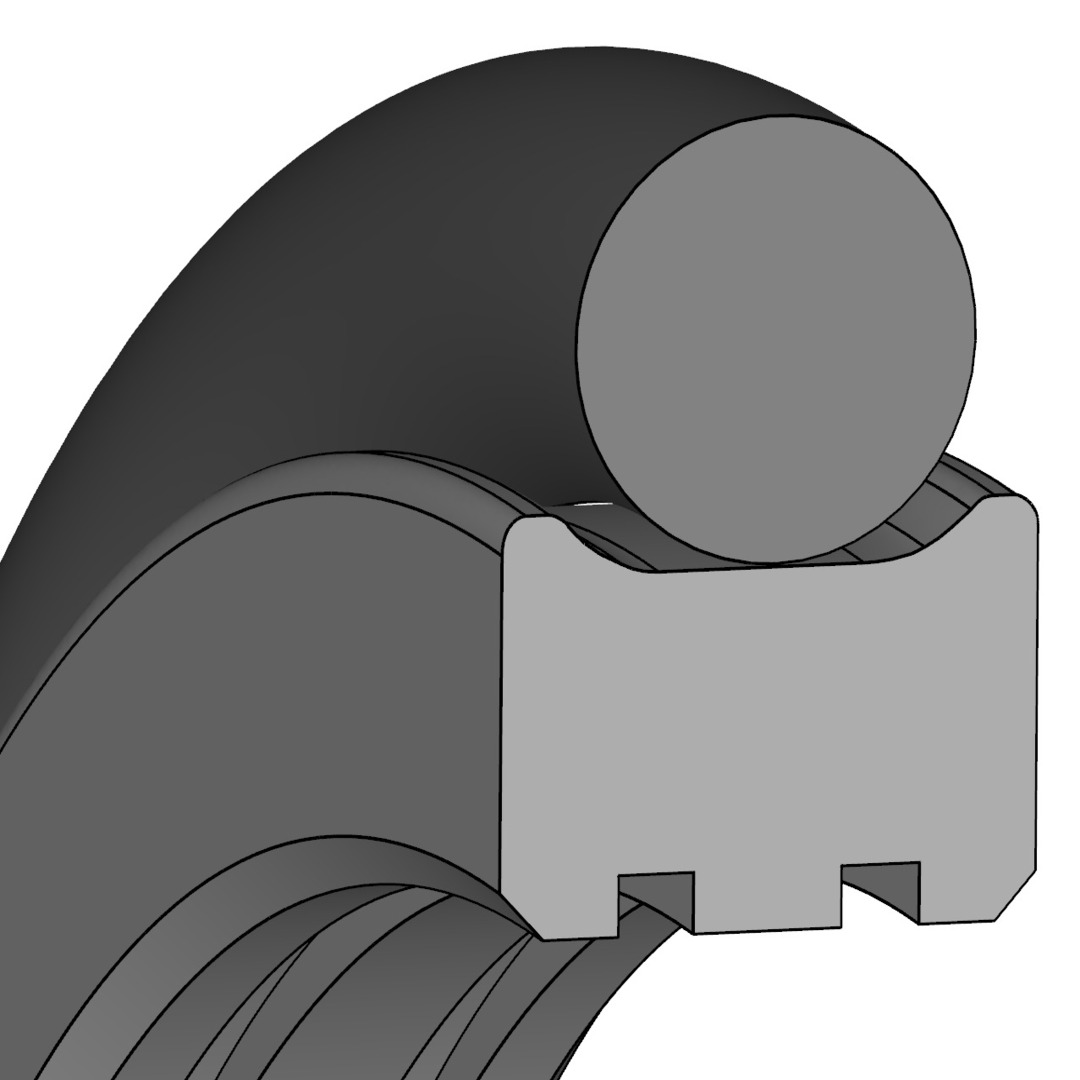

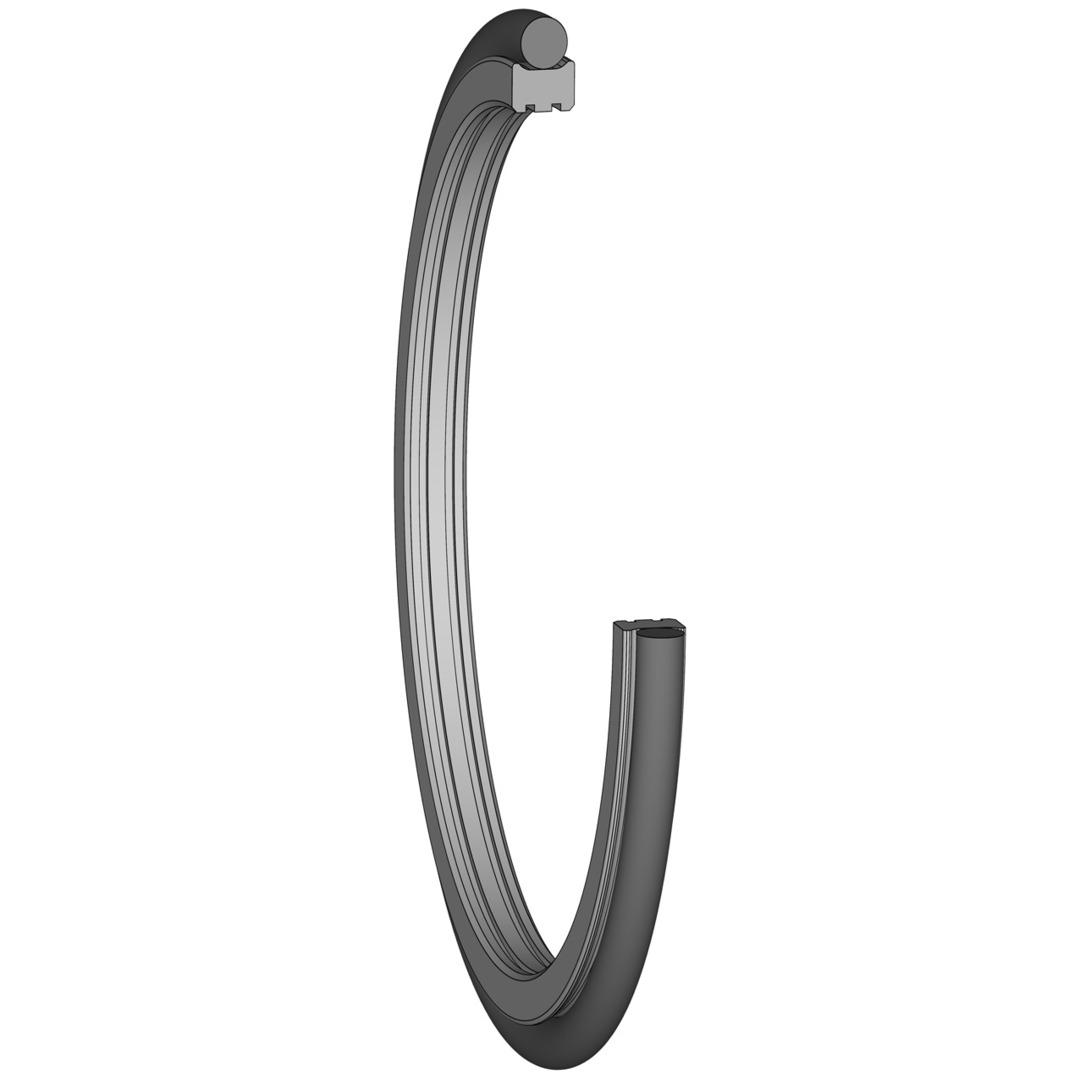

The RPORI 32 is a twin-action seal consisting of a PTFE sealing element pretensioned by an O-ring. The seal is internally sealing and is normally used in a twin arrangement. The sealing surface is specially designed for use under high pressures and at low speeds. The grooves running round the dynamic sealing surface offer the possibility of creating a deposit of lubricant. This has the effect of reducing friction and enhancing emergency running properties.

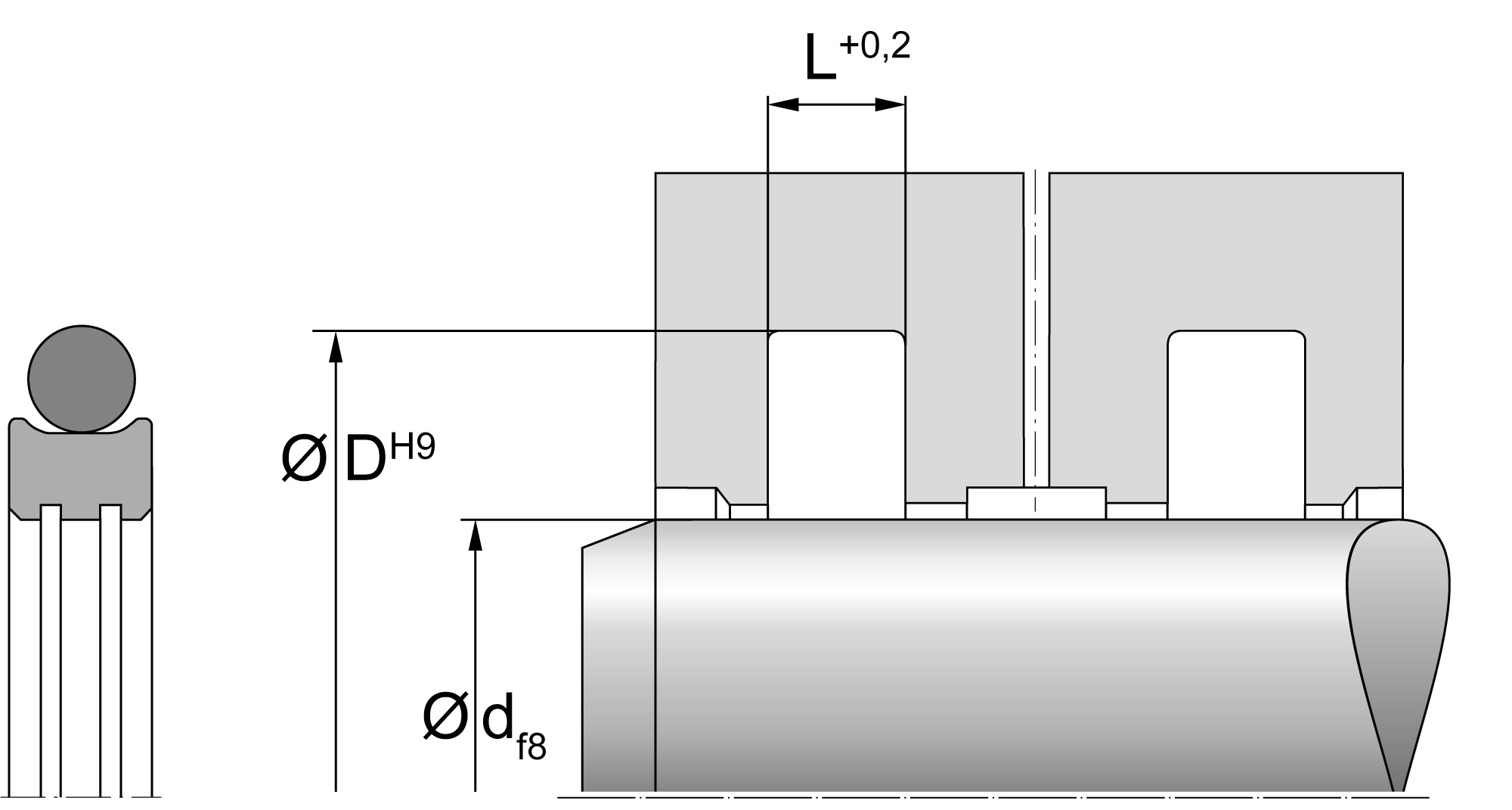

For smaller diameters, the seal requires an installation housing offering axial access. For larger diameters, seals can be installed in an enclosed installation housing. Calibration is then required.
The RPORI 32 is used for sealing hydraulic rotary transmission leadthroughs and to seal swiveling or rotating shafts/rods.
