RPORA 32

Product group:
R radial seal
Profile no.:
32
Model
RPORA
Material:
PTFE 009809 NBR 70
Colour:
black
Specification
Z pressure load applied at both sides

Produktdata

Operational application limits

Pressure (MPa): ≤ 30
Temperature (°C): -30 to + 120
Peripheral speed (m/s): ≤ 5

Media

Hydraulic oils as per DIN 51524 Part 1 – 3, lubricating oils, mineral-oil based lubricating greases, non-flammable hydraulic fluids HFA, HFB, HFC as per VDMA 24317, water, water-oil emulsions

Function

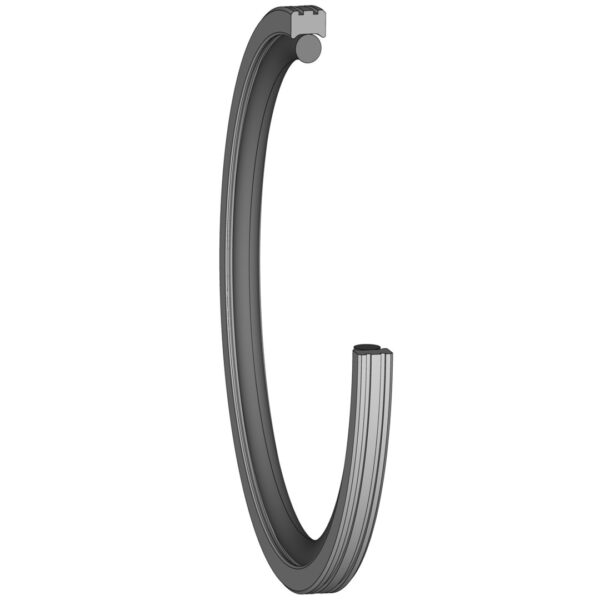

The RPORA 32 is a twin-action seal consisting of a PTFE sealing element pretensioned by an O-ring. The seal is externally sealing and is normally used in a twin arrangement. The sealing surface is specially designed for use under high pressures and at low speeds. The grooves running round the dynamic sealing surface offer the possibility of creating a deposit of lubricant. This has the effect of reducing friction and enhancing emergency running properties.

Installation

For smaller diameters, the seal requires an installation housing offering axial access. For larger diameters, seals can be installed in an enclosed installation housing. Calibration is then required.

Applications

The RPORA 32 is used for sealing hydraulic rotary transmission leadthroughs and to seal swiveling or rotating pistons.
