Pressure (MPa): ≤ 30
Temperature (°C): -40 to +100
Running speed (m/s): ≤ 0.5
Hydraulic oils acc. to DIN 51524 Part 1 – 3, lubricating oils, mineral oil based lubricating greases, highly non-flammable hydraulic fluids HFA, HFB, HFC acc. to VDMA 24317

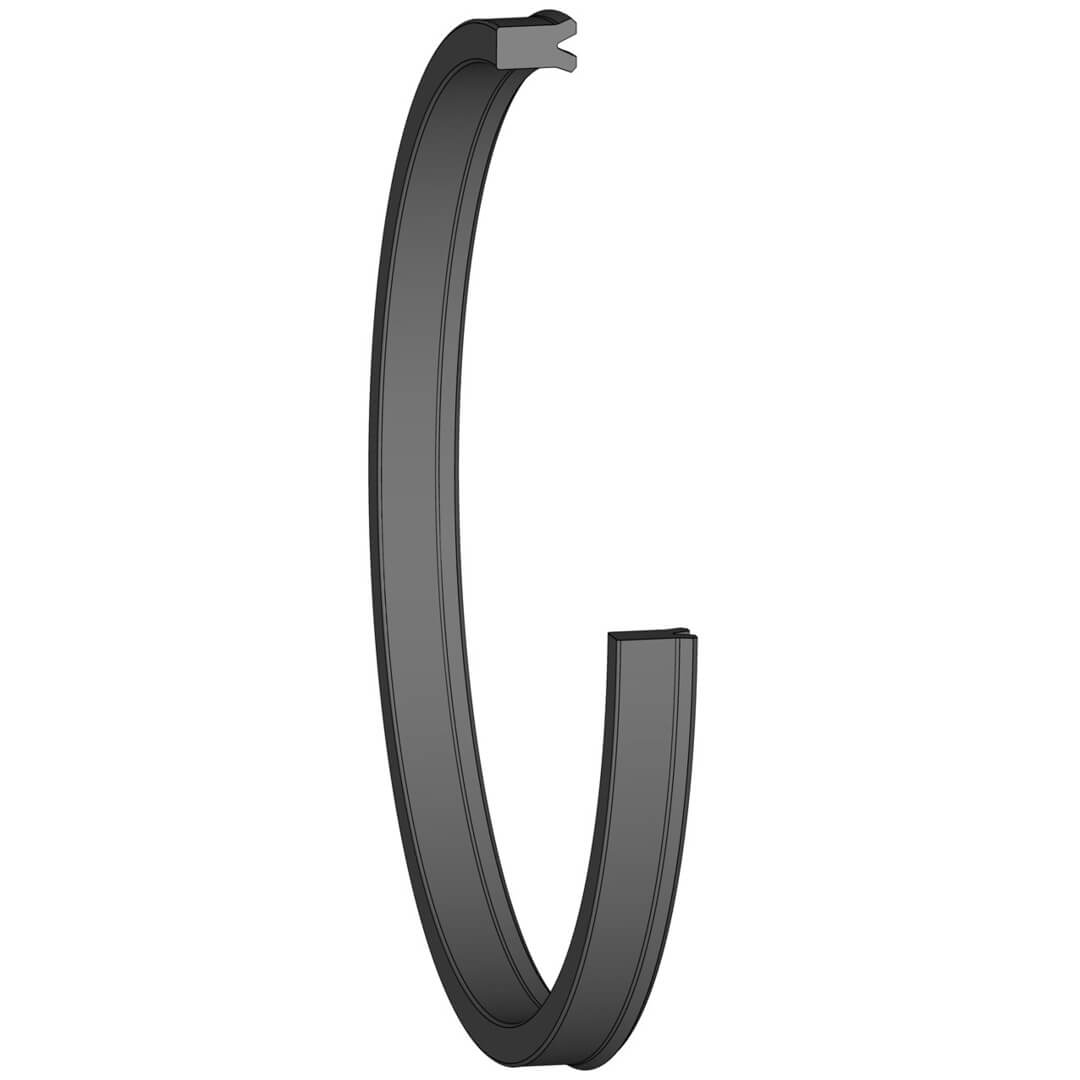

The SN 25 u-ring has a symmetrical design which allows its application as a piston seal and as a rod seal.
U-rings can be installed in both solid and split housings. Please note for a solid housing application a minimum width is necessary and suitable installation tool may be required.
Seals made of TPU are very robust and are particularly well-suited for applications in mobile hydraulics and especially in the area of earth moving machines.
